Introduction

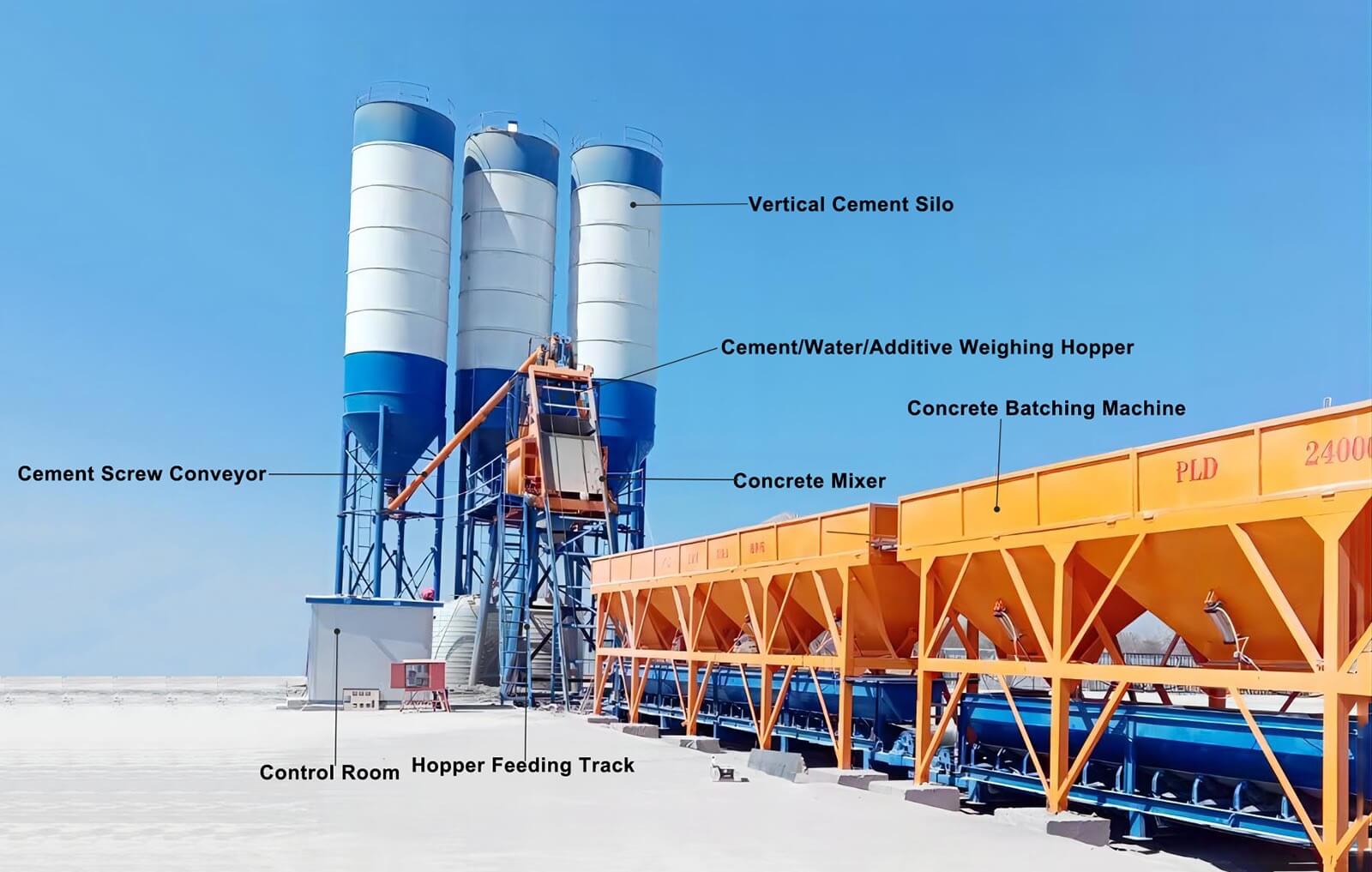

HZS25 bucket concrete mixing plant adopts a JS500 double horizontal shaft concrete mixer, batching machine adopts a PLD800 batching machine, the theoretical output is 25 cubic meters per hour.
Main Details

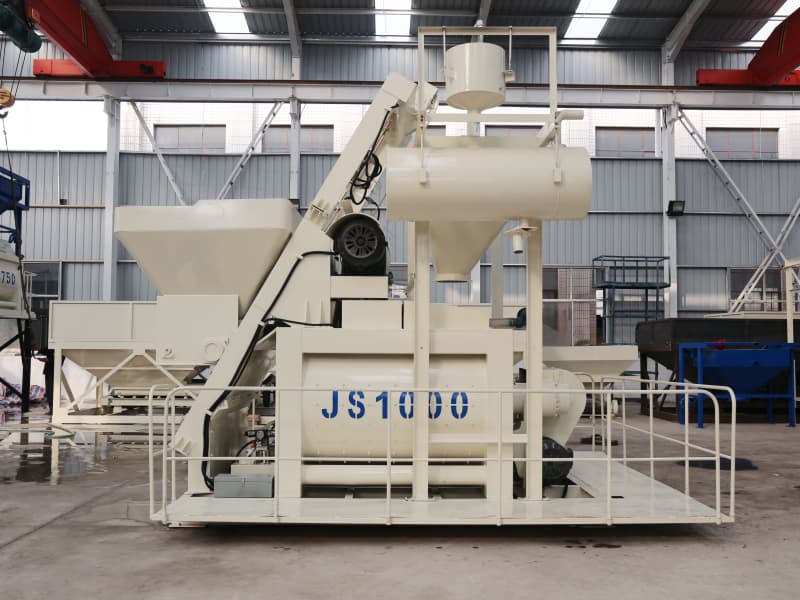

Mixing System
- Patented multi-end sealing technology to avoid leakage and protect shaft ends.
- Adopts wear-resistance blade and liner plates, lifetime is over 60,000 times.
- Equipped with auto lubrication pump to save labor and extend lifetime.
- Advanced motor and reducer driven system to keep stable performance.
Weighing System
- Powder and water or additives are measured independently, ensuring fast and high accuracy weighing.
- Famous brand sensor ensures the error no more than 1%.

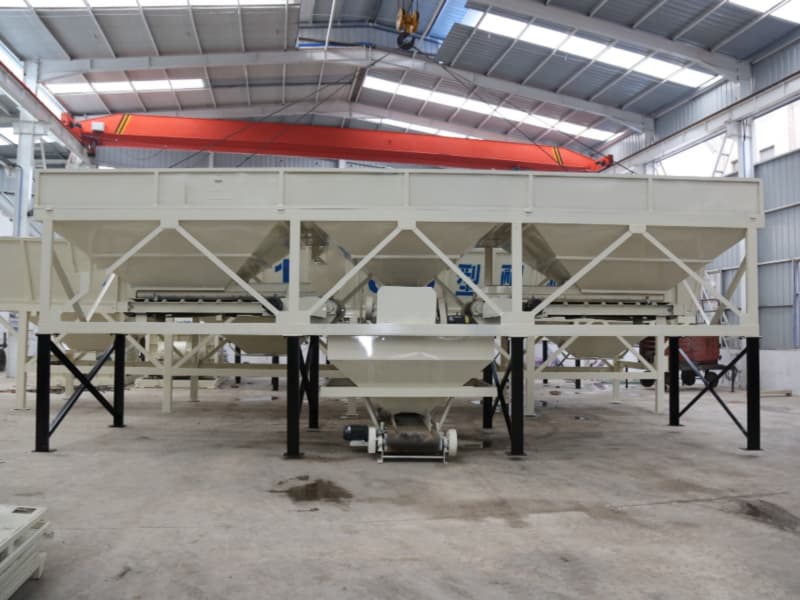

Aggregate Batching System
- Sand storage bin is with large vibrator, guarantee smooth and fast discharge.
- Accumulative weighing system or separate weighing system is available choice.
- High accuracy sensor ensures the error no more than 2%.
Aggregate Conveying System
- Adopt a bucket feeding method, flexible feeding and simple operation.
- Assemble ladder, sidewalk and handrail, easy for maintenance.
- Solid hopper pulley to ensure the durable performance.
Control System
- Automatic or manual can be adjusted flexibly smoothly.
- All wires & cables are coded, easy to track and maintenance.
- Intelligent management system for task tracking, printing, etc.
- Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part.
Cement Screw Conveyor
- High revolving speed, large conveying capacity and high precision.
- Easy assemble, easy connection and reliable sealing.
- Wide application: a variety of powder, granular or small bulk materials.
- Angle and length are all can be customized.
Cement Silo
- Vertical or horizontal cement silo is available for selection.
- Capacity range from 50T to 300T can be customized.
- Accessories are including air-break device, gate valve, relief valve, level meter, dust collector, etc.
- High-quality steel, good sealing, stable support and long service life.
Advantages
Service
Pre-sale Services
- Quick response.
- Provide detailed quotation.
- Provide scheme design and site planning.
- Accept customer's visit.
On-sale Services
1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.
After-sale Services
- One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
- Make regular remote visits.
- Lifelong after-sales technical support service.
Delivery
Application
