Introduction

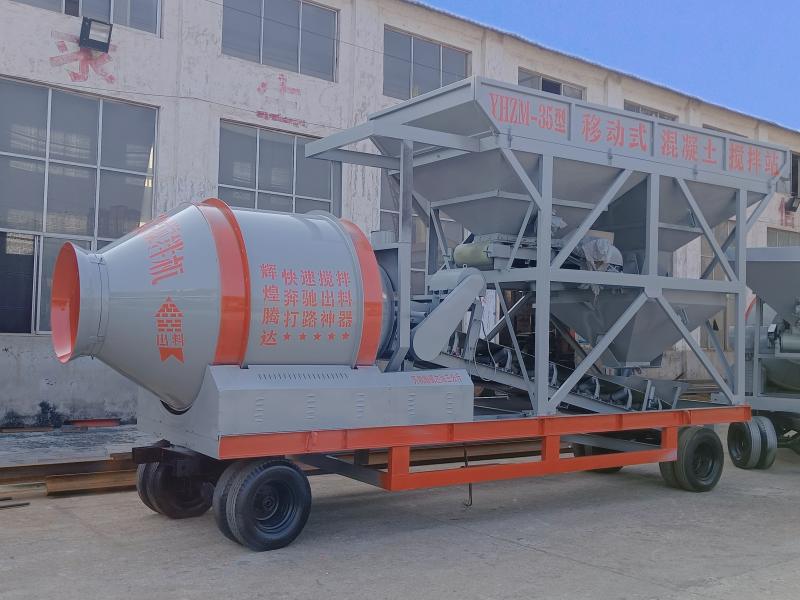

YHZM50 mobile drum concrete mixing plant adopts a JZM1000 drum concrete mixer, batching machine adopts a PLD1600 batching machine, the theoretical output is 50 cubic meters per hour.
Main Details

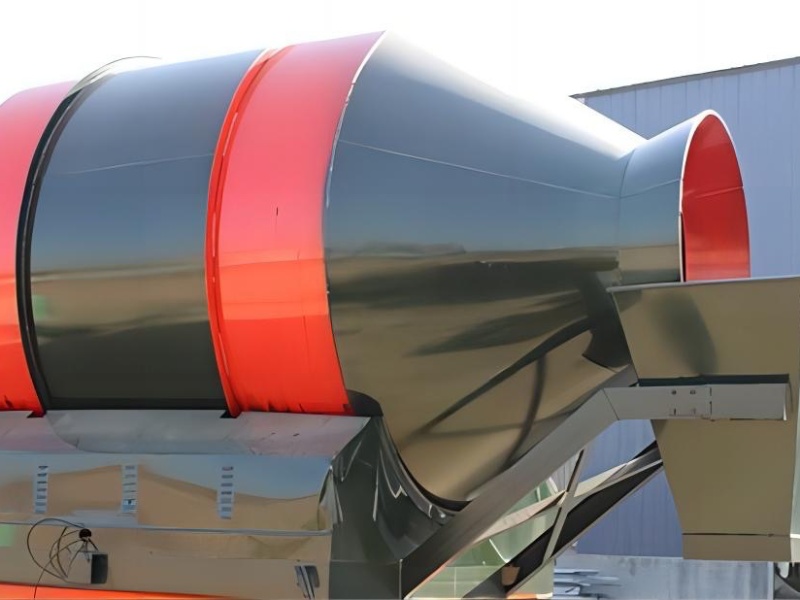

Mixing System
- Adopt rubber roller to drive the drum, with low noise, stable performance, simple operation and convenient movement, and more uniform stirring.
- Can mix a variety of concrete such as fluidity, semi-hardness and hardness.

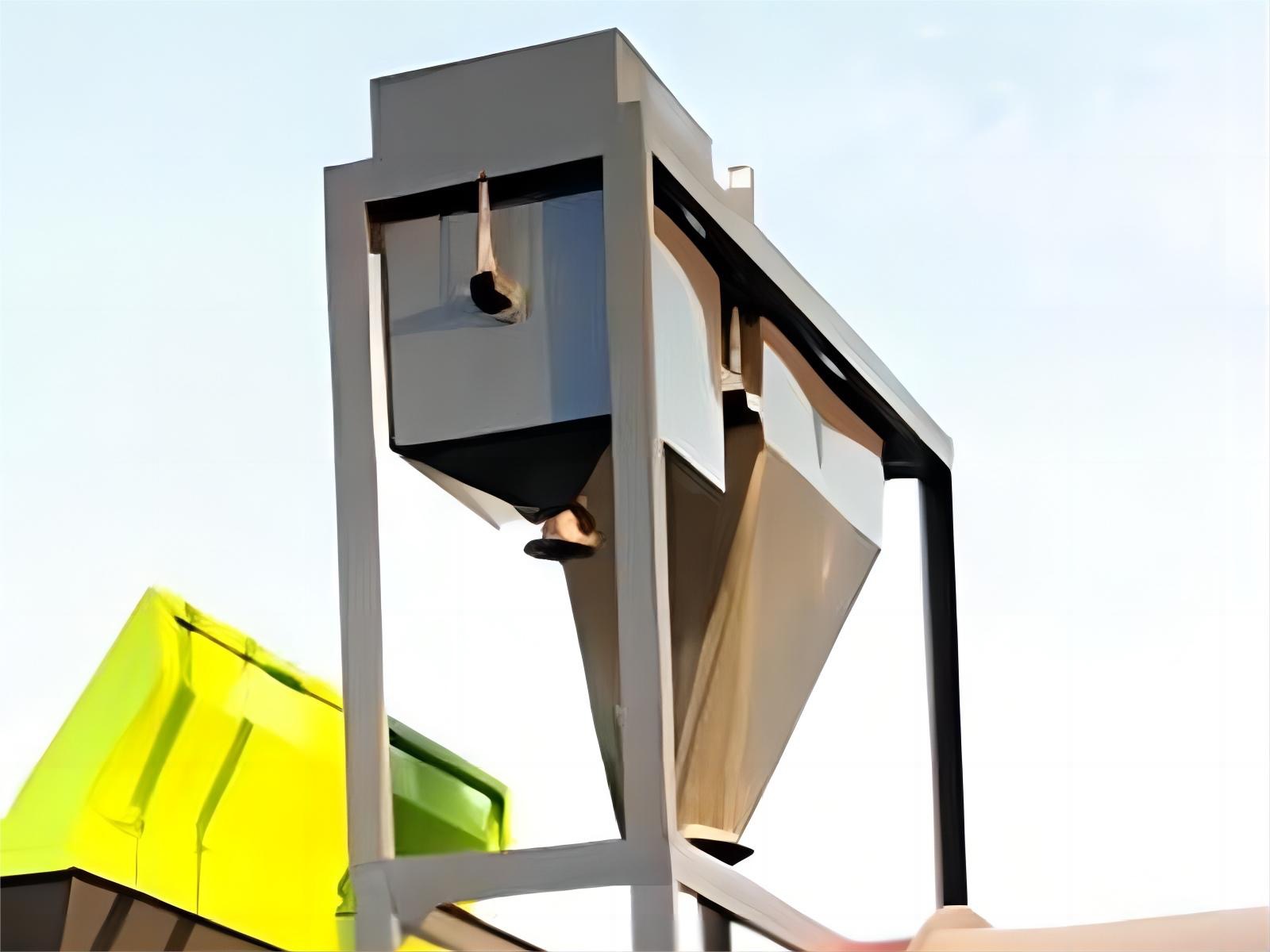

Weighing System
- Powder and water or additives are measured independently, ensuring fast and high accuracy weighing.
- Famous brand sensor ensures the error no more than 1%.

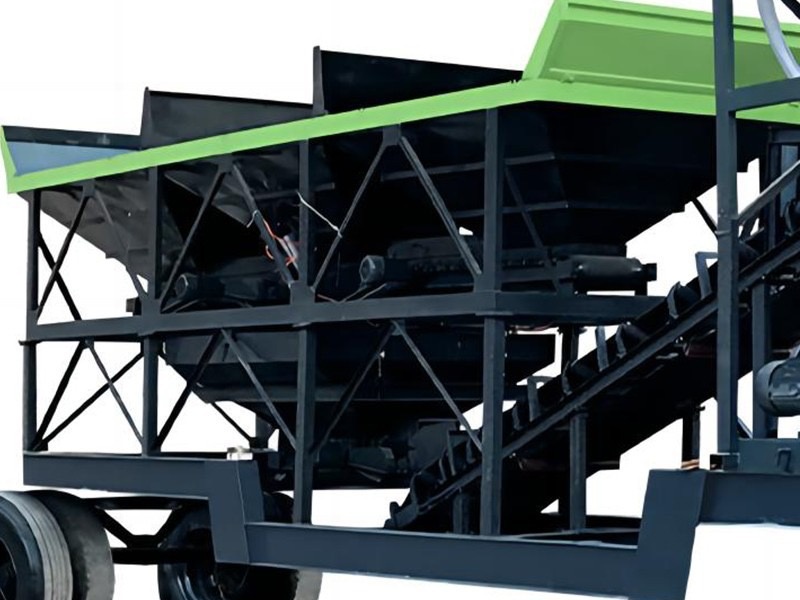

Aggregate Batching System
- Sand storage bin is with large vibrator, guarantee smooth and fast discharge.
- Accumulative weighing system or separate weighing system is available choice.
- High accuracy sensor ensures the error no more than 2%.

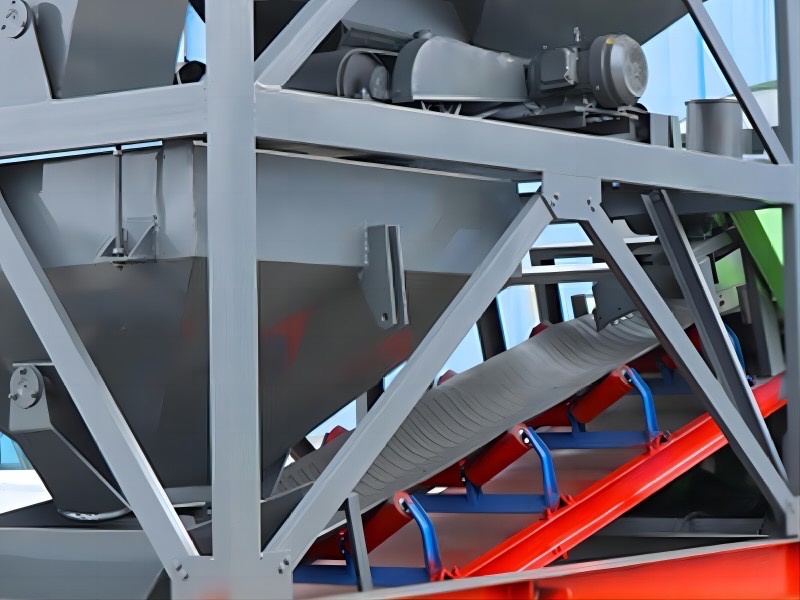

Aggregate Conveying System
- Inclined angle up to 32 degree, stand small area.
- Equipped with recycled belt conveyor to reuse the leakage material.
- Vibrating Return cover to avoid sticks.

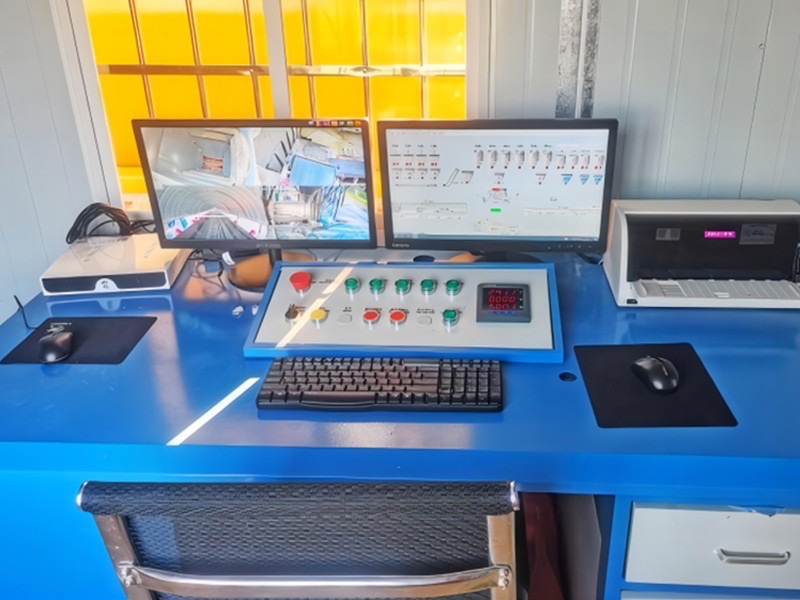

Control System
- Automatic or manual can be adjusted flexibly smoothly.
- All wires & cables are coded, easy to track and maintenance.
- Intelligent management system for task tracking, printing, etc.
- Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part.

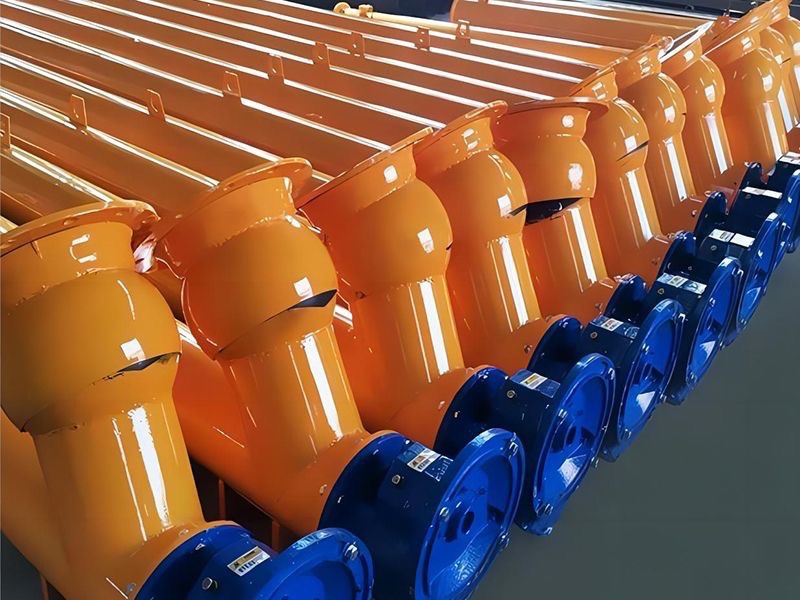

Cement Screw Conveyor
- High revolving speed, large conveying capacity and high precision.
- Easy assemble, easy connection and reliable sealing.
- Suitable for conveying a variety of powder, granular, small bulk materials.
- Diameter as φ219mm/φ273mm/φ325mm, lengths as 6m, 8m or 10m, all can be customized.

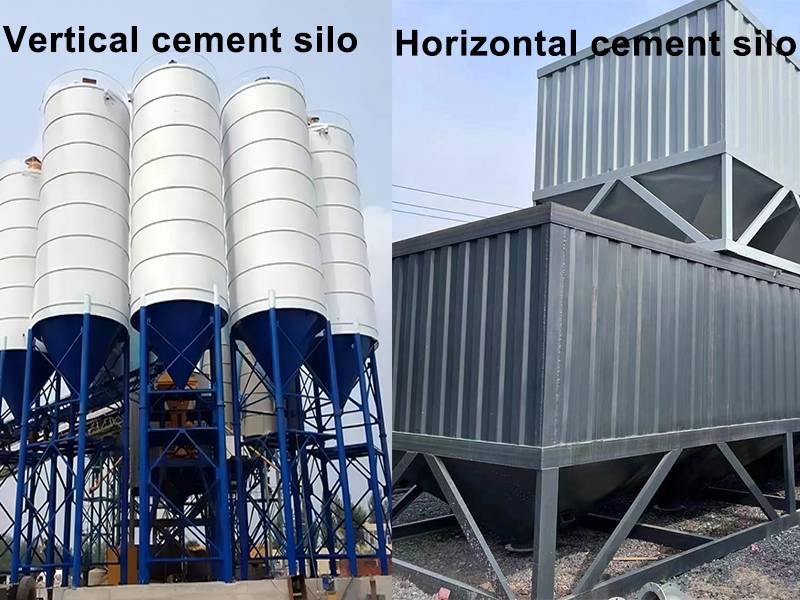

Cement Silo
- Vertical or horizontal cement silo is available for selection.
- Capacity range from 50T to 300T can be customized.
- Accessories are including air-break device, gate valve, relief valve, level meter, dust collector, etc.
- High-quality steel, good sealing, stable support and long service life.
Advantages
Service
Pre-sale Services
- Quick response.
- Provide detailed quotation.
- Provide scheme design and site planning.
- Accept customer's visit.
On-sale Services
1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.
After-sale Services
- One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
- Make regular remote visits.
- Lifelong after-sales technical support service.
